660mm Two Roll Rubber Mixing Mill

Ask Lasest Price
Brand Name :	HHS
Model Number :	XK560
Certification :	CE
Price :	USD33000/SET
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	50SETS/MONTH
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

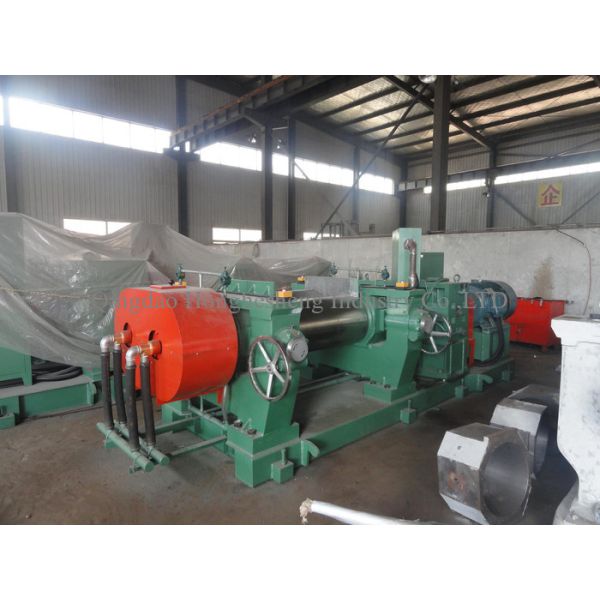

660mm Two Roll Rubber Mixing Mill

XK-560 Automatic Stock Blender Two Roll Open Mixing Mill / Rubber Mixing Mill / Open Mixer

A. Mixing mill is mainly applicable for both nature and synthetic rubber.

1. the roll is made of chilled cast iron of vanadium and titanium alloy,the cavity machining,the roll surface temperature umformity.

2. The machine is equipped with over load protection device ,prevent the major componets from being damaged due to overloading.

3. The machine is equipped with an emergency brake,wehen the event of an emergeacy,pull the safety rod,the machine will stop immediately,safe and reliable.

4. the transmission system adopts the Harden Reducer,compact structure,low noice ,high efficiency,long service life.

5. Roller bearing of rolling bearings ,lubration of grease.

6. Electrical control part adopts domestic advanced electrical components ,Convenient operation,stable performance.

7. Adjusttable pitchiis manual of electric adjustable pitch.

B. Technical parameters:

Version	XK-560	XK-660
Roll diameter(mm)	560	660
Working length of rolls(mm)	1530	2130
Front roll surface speed(m/min)	27.72	28.6
Friction ratio	1:1.2	1:1.24
Max.nip (mm)	15	15
Capacity per.batch (kg)	35-50	165
Motor power (kw)	90	245
Overall dimensions(mm)	584522841978	746536622080
Weight(kg)	23000	49000

C. XK-450 open mixing mill

660mm Two Roll Rubber Mixing Mill
