Dispersion Kneader For Natural Rubber, Synthetic Rubber, Reclaimed Rubber
Parameter of Popular Selling High Quality Rubber Kneader Machine/Rubber Banbury Kneader Mixer/Rubber Mixing Machine.
| Parameter/model | X(S)N-3 | X(S)N-10 | X(S)N-20 | X(S)N-35 | X(S)N-55 | X(S)N-75 | X(S)N-110 | X(S)N-150 | X(S)N-200 |
| Total volume (L) | 8 | 25 | 45 | 80 | 125 | 175 | 250 | 325 | 440 |
| Working volume (L) | 3 | 10 | 20 | 35 | 55 | 75 | 110 | 150 | 200 |
| Driving motor power (KW) | 7.5 | 18.5 | 37 | 55 | 75 | 110 | 185 | 220 | 280 |
| Tilting motor power (KW) | 0.55 | 1.5 | 1.5 | 2.2 | 2.2 | 4.0 | 7.5 | 15 | 7.5 |
| Tilting angle | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 |
| Rotor speed (RPM) | 32/25 | 32/25 | 32/26.5 | 32/24.5 | 32/26 | 32/26 | 30/24.5 | 30/24.5 | 30/24.5 |
| Pressure of compressed air (MPA) | 0.7-0.9 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Capacity of compressed air (m³/min) | ≥0.3 | ≥0. 5 | ≥0.7 | ≥0.9 | ≥1.0 | ≥1.3 | ≥1.6 | ≥2.0 | ≥2.0 |
| Pressure of cooling water (Mpa) | 0.2-0.4 | 0.2-0.4 | 0.2-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 | 0.3-0.4 |
| weight (kg) | 1038 | 3000 | 4437 | 6500 | 7850 | 10230 | 14200 | 19500 | 22500 |
C. Advantages:
1. Maximum Dispersion & High Production
Double blades with special spiral angle, proper clearance & high cooling effect gives excellent dispersion which can not be obtained from an open mill. Its production is 4 to 5 times more than an ordinary mixing mill thus saving on labor and electricity.
2. Super sealing,no powder leakages.
Both sides of the rotor blades are injected welding a iron alloy ring, which assures sealing and protects the blades from abrasion.Imported bakelite sealing ring,which make super sealing.The chamber around are designed with groove,then embeded with rubber stip,this make sure the whole mixing chamber is well sealed.
3. No Foundation Requirement
The Kneader has a common bed plate for all parts and not require foundation.
4. Easy Cleaning & Colour Change
Mixing chamber can be tilted down for 140degree, which enables easy cleaning, because of this, different coloured compounds can be made without trouble.
5. Easy Operation
Easy operation with Push-buttons and hand lever valves from the operation board.
6. Short Mixing Time
Mixing time ranges from 6 to 12 minutes depending on compound's specific gravity.
Samples of Popular Selling High Quality Rubber Kneader Machine/Rubber Banbury Kneader Mixer/Rubber Mixing Machine.

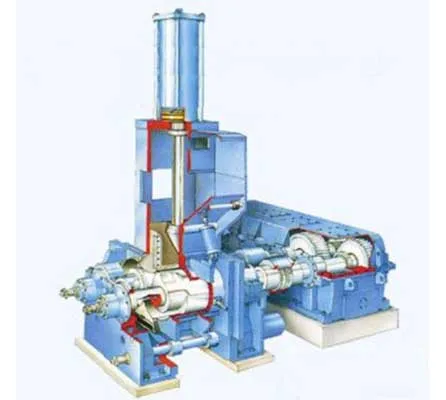

Basic Structure
mixing chamber is bore cooling ,circulation cooling forced ( warm water circulation system)guarantee the better temperature for mixing .

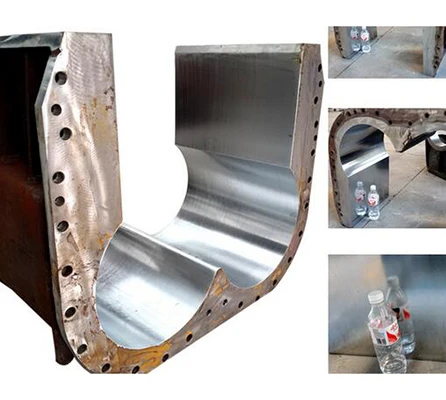

Mixing Chamber
The mixing chamber adopts cast steel, inside is chrome plated and polish to mirror effect. And the sides are drilled for good water cooling effect.
Electronics
Adopts international famous brand electronics, the work is reliable. Inside control box all electronics and wires are well
designed, rational arrayed. So the wire connection and operation is easy and maintenance is easy.
Control Panel
Our kneader machine adopts international famous brand control system. The work is stable and accurate, reliable, trouble free.
Qingdao Honghesheng Industry Co., Ltd.
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber
machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company
covers an area of 5000 square meters with 26 professional and
technical staffs and 5 senior engineers. The technical staffs have
working experience in large tire enterprise who can design more
suitable equipment for the customer as for tire production process.
Also they can provide new factory site planning and other services.
The company’s main products are: Rubber kneader, rubber mixing
mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling
plant…
